All stock codes associated to this product
6BXXM31, GBBXBT2807, GB-BXBT-2807, 4719331241131
- Features 22nm Intel Celeron N2807 to deliver to the most intuitive and integrated operating systems in the world
- Supports 2.5 thickness 7.0/9.5mm Hard Drives (1 x 3Gbps SATA2)
- Ultra compact PC design 0.69L(56.1x 107.6 x 114.4mm)
- 1x SO-DIMM DDR3L Slots (1333 MHz)
- Preinstall IEEE 802.11 b/g/n Wi-Fi / Bluetooth 4.0 Mini-PCIe card
- Supports dual displays via a VGA and a HDMI port
- Gigabit LAN
- Audio jack (Headphone/MIC)
- VESA mounting bracket (75 x 75mm + 100 x 100mm)

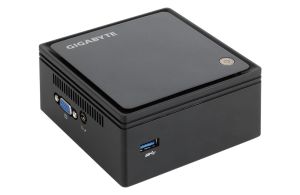

Redefining the Desktop PC
Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a stylish design based around an anthracite aluminum frame and glass surface chassis. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience, sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC / multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit. The BRIX is an ultra compact,versatile DIY PC kit that redefines the desktop PC in terms of miniaturization with a form factor that is small enough (56mm x 107mm x 114mm) to sit in the palm of your hand.
Intel® Celeron N2807
Based on the Silvermot micro-architecture, utilizing the 22nm process technology. The SoCs feature significant improvements in computational power, energy efficiency, enhanced graphical and media performance making the BRIX ideal for thin clients, retail transactional clients, and digital signage.
Advanced Features For Power Users
The Brix is engineered to take full advantage of what the hardware and its UEFI BIOS are capable of. And therefore, it’s designed to deliver the most intuitive and integrated operating systems in the world.
Trouble-Free Setup

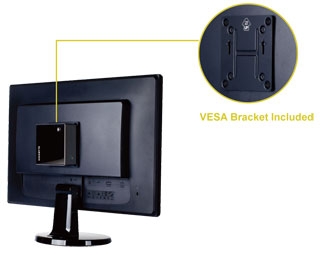

The BRIX is packed with wall mount adapter whether undergo rigorous testing for safety and reliability. The BRIX also bundled with a VESA bracket, it can easily be mounted behind a monitor or HDTV making it discreetly hidden from view. This offers a simple and elegant way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
Specifications:
| Dimension |
56.1 mm x 107.6 mm x 114.4 mm (2.21" x 4.24" x 4.5") |
| Motherboard |
100 x 105 mm |
| CPU |
Intel Celeron Processor N2807 up to 2.17GHz |
| Memory |
1x SO-DIMM DDR3L 1.35V slot
1333MHz
Max. 8GB |
| LAN |
Gigabit LAN (Realtek RTL8111G) |
| Audio |
Realtek ALC283 |
| Video |
Intel HD Graphics |
| VGA Resolution (Max.) |
2560 x 1600 @ 60Hz |
| HDMI Resolution (Max.) |
1920 x 1200 @ 60Hz (HDMI 1.4a) |
| Expansion Slots |
1 x Half-size mini-PCIe slot occupied by the WiFi+BT card |

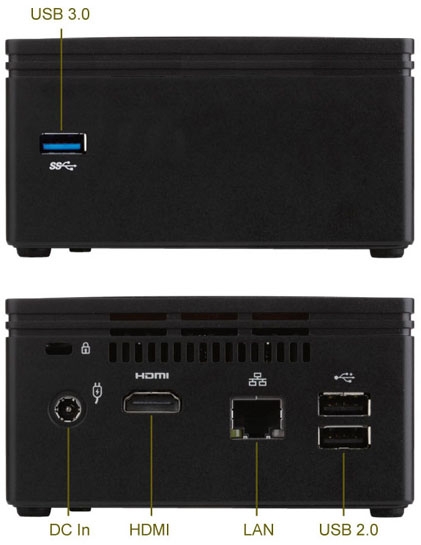

| Front I/O |
1 x USB 3.0 |
| Rear I/O |
1 x HDMI
2 x USB 2.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot |

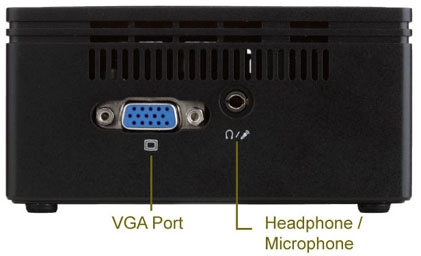

| Side I/O |
1 x VGA D-Sub
1 x Audio-out / Mic-In |
| Storage |
2.5" SATA HDD |
| Power Supply |
Input: AC 100-240V
Output: DC 12V
2.5A |
| VESA |
Bracket included
Supports 75 x 75 and 100 x 100 mm |
